Cognitive Models for Subjective Scales and Decision Making Tasks in R

Status

Status
Status

This package is very much totally exploratory - currently made for my own needs. It’s not meant to be stable and robust at this stage. Use at your own risks.

  • If you have suggestions for improvement, please get in touch!
  • I’ve been seeking the best way to implement various sequential models for a long time, initially trying and failing in R, then developing a lot of hopes for a Julia solution - but that’s not there yet, so I’m back at making some new attempts in R.

Installation

if (!requireNamespace("remotes", quietly = TRUE)) install.packages("remotes")

remotes::install_github("DominiqueMakowski/cogmod")

Main Distributions

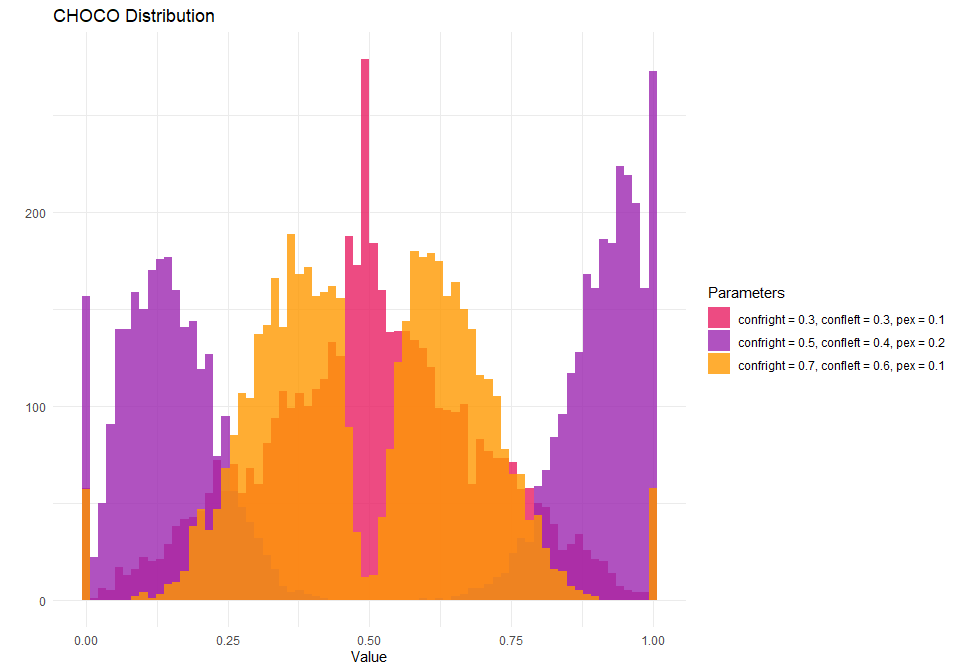

CHOCO Model

The Choice-Confidence (CHOCO) model is useful to model data from subjective ratings, such as Likert-type or analog scales, in which the left and the right side correspond to different processes or higher order categorical responses (e.g., “disagree” vs. “agree”, “true” vs. “false”). They can be used to jointly model choice (left or right) and confidence (the degree of left or right).

Code
library(ggplot2)
library(patchwork)
library(cogmod)

# Simulate data using rchoco() with two parameter sets
df1 <- rchoco(n = 5000, confright = 0.8, confleft = 0.7, pex = 0.05)
df2 <- rchoco(n = 5000, confright = 0.3, confleft = 0.3, pex = 0.1)
df3 <- rchoco(n = 5000, confright = 0.3, confleft = 0.3, pex = 0.1,
               precright = 1.5, precleft = 1.5, pmid = 0.01)

# Combine data into a single data frame
df <- data.frame(
  value = c(df1, df2, df3),
  group = rep(c(
    "confright = 0.5, confleft = 0.4, pex = 0.2",
    "confright = 0.7, confleft = 0.6, pex = 0.1",
    "confright = 0.3, confleft = 0.3, pex = 0.1"
  ), each = 5000)
)

# Create the histogram
ggplot(df, aes(x = value, fill = group)) +
  geom_histogram(alpha = 0.8, position = "identity", bins = 70) +
  labs(title = "CHOCO Distribution", x = "Value", y = "", fill = "Parameters") +
  theme_minimal() +
  scale_fill_manual(values = c("#E91E63", "#9C27B0", "#FF9800"))

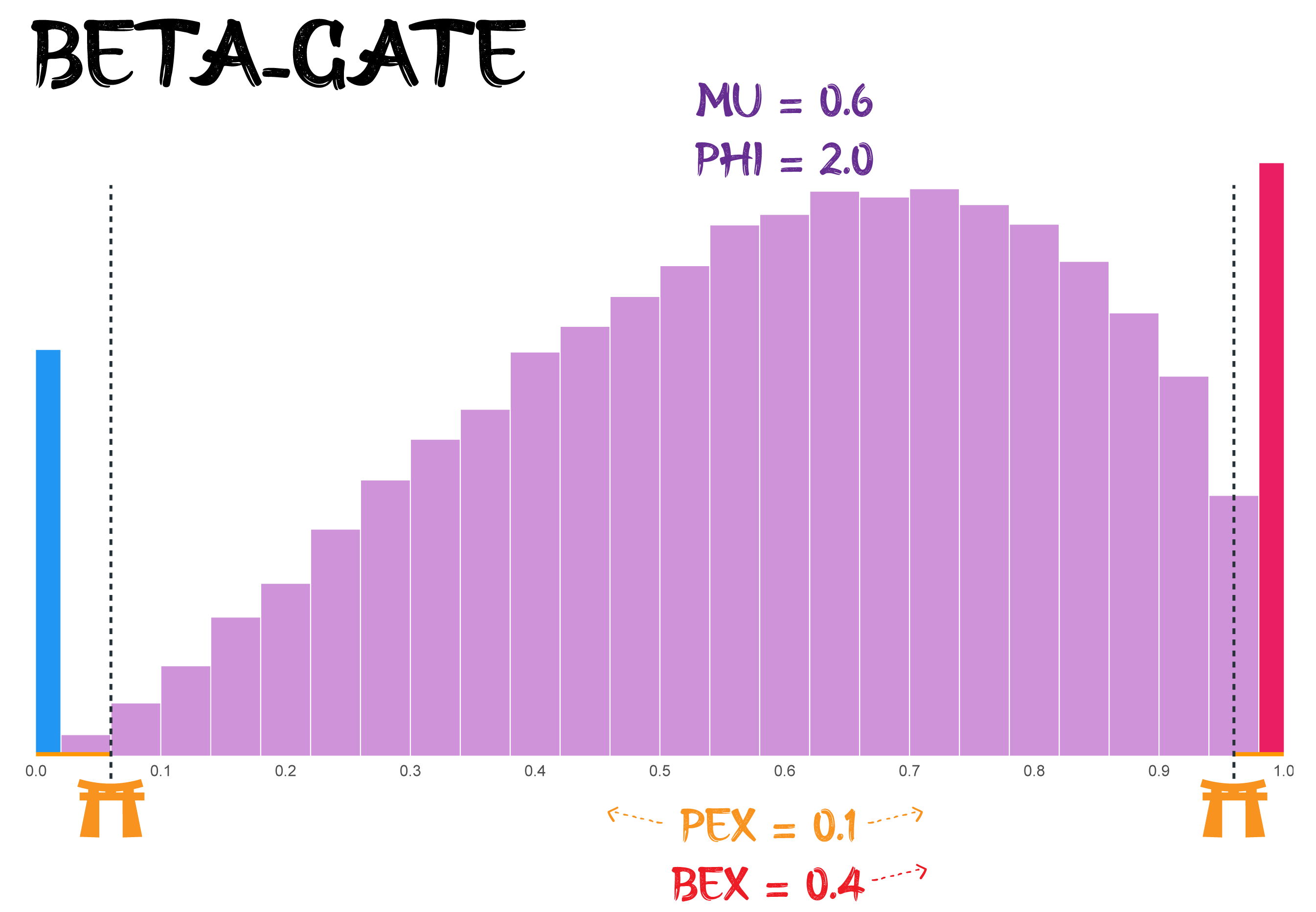

Beta-Gate

The Beta-Gate model corresponds to a reparametrized ordered beta model (Kubinec, 2023). In the ordered Beta model, the extreme values (0 and 1) arise from censoring an underlying latent process based on cutpoints (“gates”). Values falling past the gates are considered extremes (zeros and ones). The difference from the Ordered Beta is the way the cutpoints are defined, as well as the scale of the precision parameter phi.

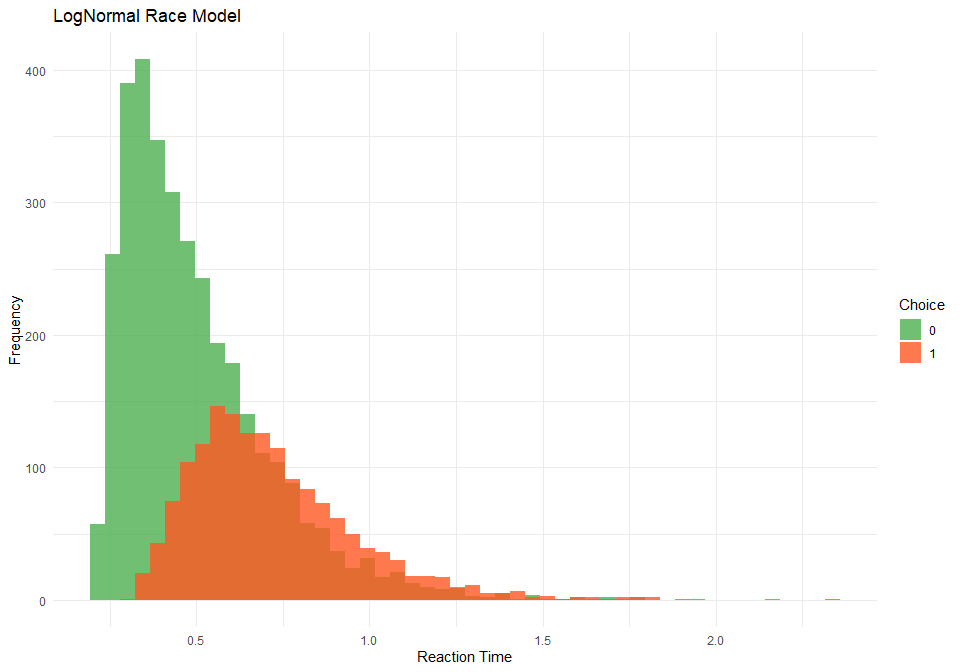

LNR Model

The Log-Normal Race (LNR) model is useful for modeling reaction times and errors in decision-making tasks. The model assumes that each accumulator draws a value from a LogNormal distribution (shifted by a non-decision time τ). The winning accumulator (minimum draw) determines the observed reaction time and choice.

Code
# Simulate data using rlnr()
lnr_data <- rlnr(n = 5000, nuzero = 1, nuone = 0.5, sigmazero = 1, sigmaone = 0.5, ndt = 0.2)

# Create histograms for each choice
ggplot(lnr_data, aes(x = rt, fill = factor(response))) +
  geom_histogram(alpha = 0.8, position = "identity", bins = 50) +
  labs(title = "LogNormal Race Model", x = "Reaction Time", y = "Frequency", fill = "Choice") +
  theme_minimal() +
  scale_fill_manual(values = c("#4CAF50", "#FF5722"))

Usage with brms

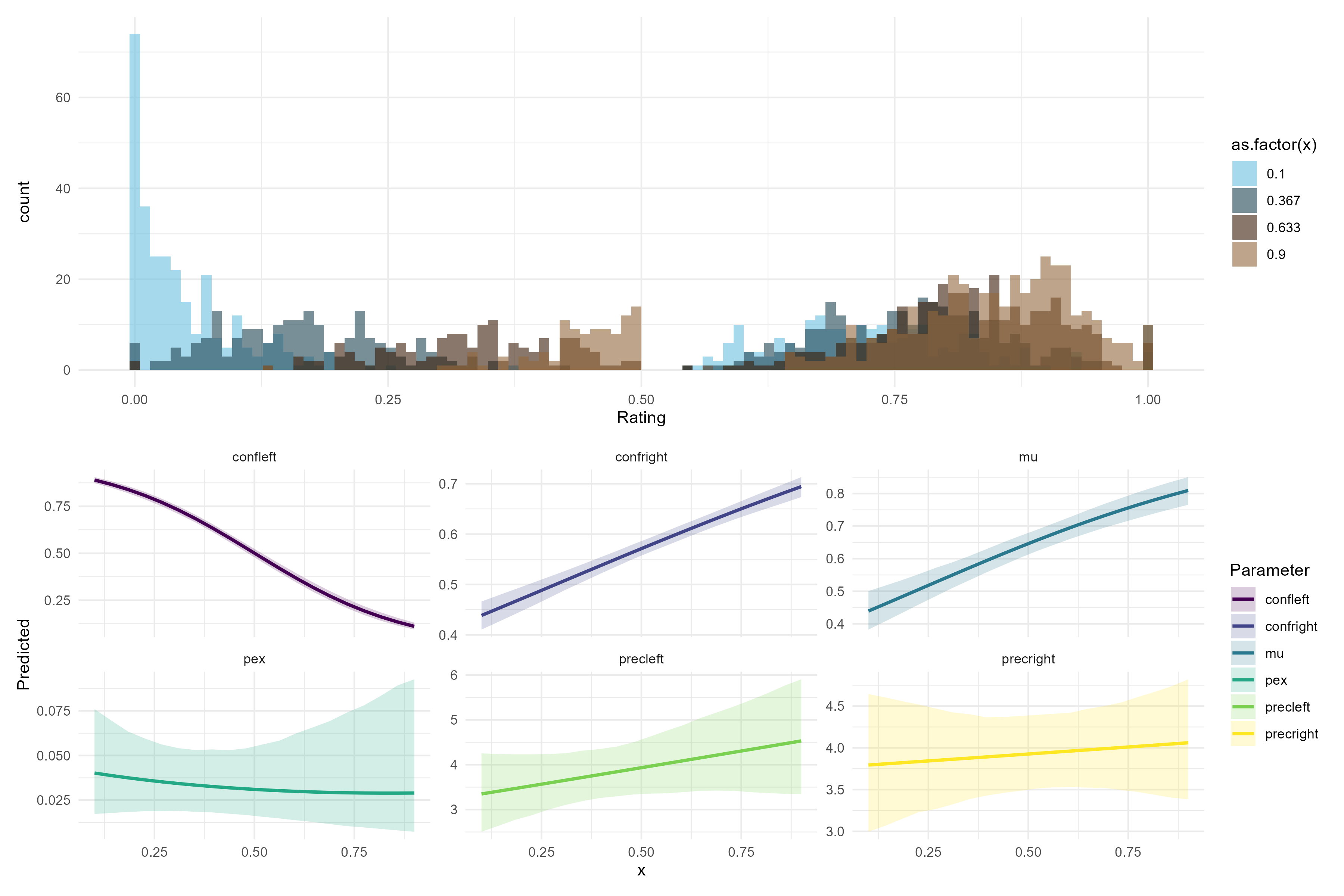

Subjective Ratings

Cognitive Tasks

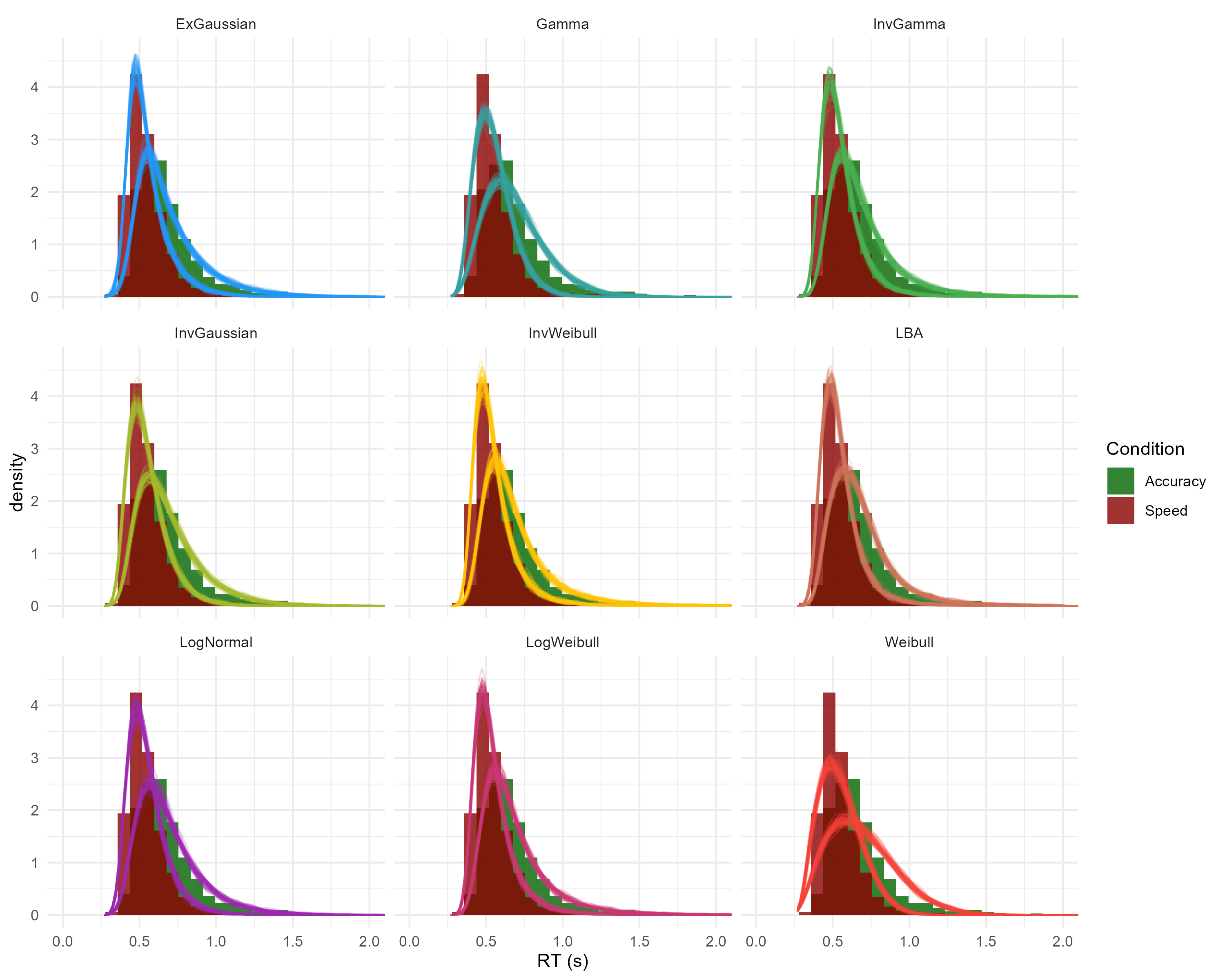

RT-only Models

Decision Making (Choice + RT)

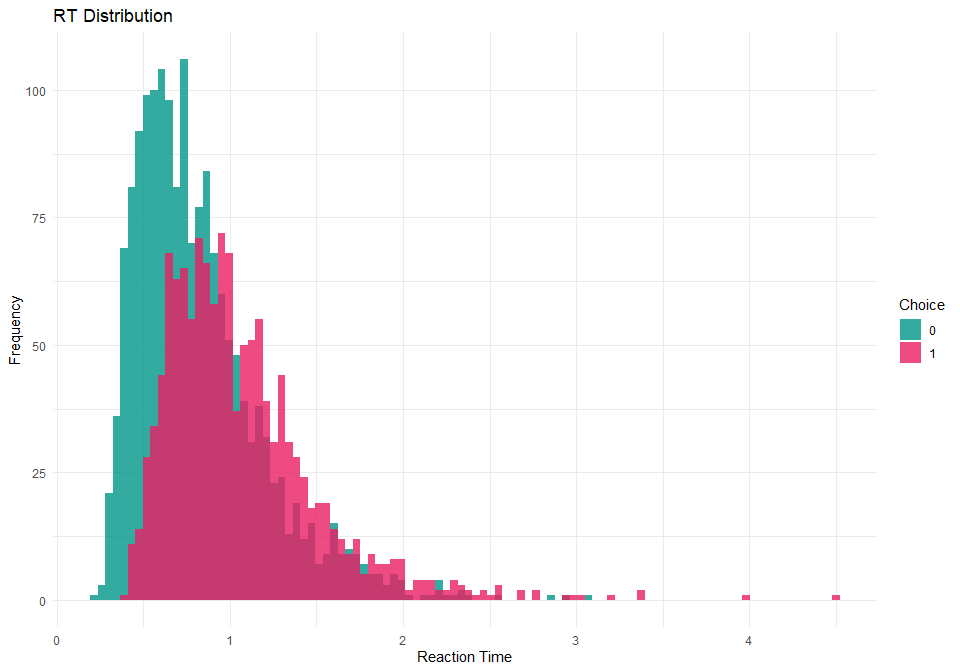

Simulate Data
df <- rlnr(n = 3000, nuzero = 0.2, nuone = 0, sigmazero = 0.8, sigmaone = 0.5, ndt = 0.2) |>
  datawizard::data_filter(rt < 5)

df |>
  ggplot(aes(x = rt, fill = factor(response))) +
  geom_histogram(alpha = 0.8, position = "identity", bins = 100) +
  labs(title = "RT Distribution", x = "Reaction Time", y = "Frequency", fill = "Choice") +
  theme_minimal() +
  scale_fill_manual(values = c("#009688", "#E91E63"))

dfcorrect <- df[df$response == 0,]
Drift Diffusion Model (DDM)
f <- bf(
  rt | dec(response) ~ 1,
  bs ~ 1,
  bias ~ 1,
  tau ~ 1,
  minrt = min(df$rt),
  family = ddm()
)

m_ddm <- brm(f,
  data = df,
  init = 0,
  family = ddm(),
  stanvars = ddm_stanvars(),
  chains = 4, iter = 500, backend = "cmdstanr"
)

m_ddm <- brms::add_criterion(m_ddm, "loo")

saveRDS(m_ddm, file = "man/figures/m_ddm.rds")
Linear Ballistic Accumulator (LBA)
f <- bf(
  rt | dec(response) ~ 1,
  vdelta ~ 1,
  sigmazero ~ 1,
  sigmadelta ~ 1,
  A ~ 1,
  k ~ 1,
  tau ~ 1,
  minrt = min(df$rt),
  family = lba()
)

priors <- c(
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = "tau"),
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = "A"),
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = "k"),
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = ""),
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = "vdelta"),
    brms::set_prior("normal(0, 1)", class = "Intercept", dpar = "sigmazero")
  ) |>
    brms::validate_prior(f, data = df)


m_lba <- brm(f,
  data = df,
  init = 1,
  prior = priors,
  family = lba(),
  stanvars = lba_stanvars(),
  chains = 4, iter = 500, backend = "cmdstanr"
)

m_lba <- brms::add_criterion(m_lba, "loo")

saveRDS(m_lba, file = "man/figures/m_lba.rds")
LogNormal Race (LNR)
f <- bf(
  rt | dec(response) ~ 1,
  nuone ~ 1,
  sigmazero ~ 1,
  sigmaone ~ 1,
  tau ~ 1,
  minrt = min(df$rt),
  family = lnr()
)

m_lnr <- brm(f,
  data = df,
  init = 0,
  family = lnr(),
  stanvars = lnr_stanvars(),
  chains = 4, iter = 500, backend = "cmdstanr"
)

m_lnr <- brms::add_criterion(m_lnr, "loo")

saveRDS(m_lnr, file = "man/figures/m_lnr.rds")
Model Comparison
m_ddm <- readRDS("man/figures/m_ddm.rds")
m_lnr <- readRDS("man/figures/m_lnr.rds")

loo::loo_compare(m_ddm, m_lnr) |>
  parameters::parameters()
Code
pred <- estimate_prediction(m_lnr, data = df, iterations = 100, keep_iterations = TRUE) |>
  as.data.frame() |>
  reshape_iterations() |>
  datawizard::data_select(select = c("Row", "Component", "iter_value", "iter_group", "iter_index"))  |>
  datawizard::data_to_wide(id_cols=c("Row", "iter_group"), values_from="iter_value", names_from="Component")
pred <- datawizard::data_filter(pred, "rt < 4")


.density_rt_response <- function(rt, response, length.out = 100) {
  rt_choice0 <- rt[response == 0]
  rt_choice1 <- rt[response == 1]
  xaxis <- seq(0, max(rt_choice0, rt_choice1)* 1.1, length.out = length.out)

  insight::check_if_installed("logspline")
  rbind(
    data.frame(x = xaxis,
               y = logspline::dlogspline(xaxis, logspline::logspline(rt_choice0)),
               response = 0),
    data.frame(x = xaxis,
               y = -logspline::dlogspline(xaxis, logspline::logspline(rt_choice1)),
               response = 1)
  )
}

density_rt_response <- function(data, rt="rt", response="response", by=NULL, length.out = 100) {
  if (is.null(by)) {
    out <- .density_rt_response(data[[rt]], data[[response]], length.out = length.out)
  } else {
    out <- sapply(split(data, data[[by]]), function(x) {
      d <- .density_rt_response(x[[rt]], x[[response]], length.out = length.out)
      d[[by]] <- x[[by]][1]
      d
      }, simplify = FALSE)
    out <- do.call(rbind, out)
    out[[by]] <- as.factor(out[[by]])
  }
  out[[response]] <- as.factor(out[[response]])
  row.names(out) <- NULL
  out
}



dat <- density_rt_response(pred, rt="rt", response="response", by="iter_group")

df |>
  ggplot(aes(x=rt)) +
  geom_histogram(data=df[df$response == 0,], aes(y=after_stat(density)), fill="darkgreen", bins=100) +
  geom_histogram(data=df[df$response == 1,], aes(y=after_stat(-density)), fill="darkred", bins=100) +
  geom_line(data=dat, aes(x=x, y=y, color = response, group =  interaction(response, iter_group)), alpha=0.1) +
  scale_color_manual(values = c("green", "red")) +
  theme_minimal()
